90° Bends x 3D Grade 316L POL – Precision Fluid Management
Achieve precise and reliable fluid routing with our high-performance 90° Bends, meticulously crafted from premium Grade 316L Stainless Steel. Designed for demanding sanitary and hygienic applications, these bends offer exceptional durability and corrosion resistance, ensuring long-lasting performance in critical systems. The “POL” designation indicates a polished, optically smooth finish – vital for minimizing flow restriction and preventing debris buildup.
Key Features & Benefits:
- Material: Constructed from Grade 316L Stainless Steel – renowned for its superior corrosion resistance to acids, alkalis, and cleaning agents. This guarantees longevity and reliable operation, even in aggressive environments.
- 3D Design: Our 3D bend design minimizes turbulence and flow restriction, promoting efficient fluid transfer and reducing pressure drop.
- POL (Polished Optical): The ‘POL’ finish is crucial. This optical polishing creates a smooth, contamination-free surface, eliminating potential points for biofilm growth and maintaining pristine flow.
- Applications: Ideal for food processing, pharmaceutical, beverage, and laboratory applications where precise fluid control is paramount. Perfect for pipe system routing, sanitary plumbing, and liquid transfer.
Invest in reliability and performance. Our 90° Bends x 3D Grade 316L POL provide the precise fluid management solutions you need for your critical applications. Contact us today for a quote!

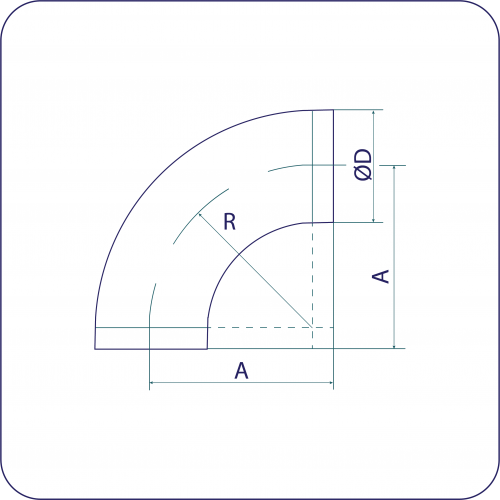

| Tube OD (mm) | A (mm) | R (mm) | WT (mm) | 1 | 115.0 | 76.2 | 1.6 |
|---|---|---|---|
| 1.5 | 140 | 114.3 | 1.6 |
| 2 | 225 | 152.4 | 1.6 |
| 2.5 | 230 | 190.5 | 1.6 |
| 3 | 265 | 219.6 | 1.6 |
| 4 | 366 | 304.8 | 2.0 |
Additional information
| Finish | Dull Polished |
|---|---|
| Grades | 316L |
